SX1 PRO FACTORY KIT is a racing kit composed of a SX1 PRO ECU, SX1 Controller, SX1 Connect, and the matching 2nd Injector Kit. Developed by GET R&D Department to optimise the flow of fuel at mid and top, ensuring better overall performance. The kit is designed only for 250cc 4T engines and gets the most out of the engine without compromising the reliability.

The SX1 PRO Factory ECU in the kit is ready with two preinstalled maps:

• Map 1: For a standard engine with OEM single injector
• Map 2: For a standard engine with GET second injector.

These maps are totally reprogrammable through both WiGET App, by using the included SX1 CONNECT device, and/or MAYA software (sold separately).

GET SX1 PRO MOTORBIKE ECUs

GET SX1 PRO is designed to optimise the potential of your bike while maintaining the same level of reliability and improving power delivery and distribution at all speeds.The control unit is a Plug&Play device. It can be installed simply and immediately directly on the main wiring of the motorbike without modifying the electrical system.

The high performance of the new processor guarantees a significant increase in the processing speed of the data coming from the CPS (Shaft Position), TPS (Throttle Position), Exhaust Gas Valve Position, MAP (Intake Manifold Pressure), IAT (Temperature Intake Air), ECT (Coolant Temperature) for optimal management of advance degrees and injection times in all weather conditions and at all altitude levels.

For the first time, the SX1 PRO is using a Full CAN-bus communication protocol. It is supplied with two Racing maps, developed and approved after intense tests resulting from collaboration with the best AMA and MXGP teams. For each map, the driver can modulate the GPA Traction Control technology on 10 different intervention levels, and activate the electronic Launch Control system for maximum speed when cornering and a winning start!

In addition to the control unit, the kit includes the essential tools to excel, which result from GET's constant research and development in major international competitions and on circuits around the world: SX1 CONTROLLER and SX1 CONNECT.

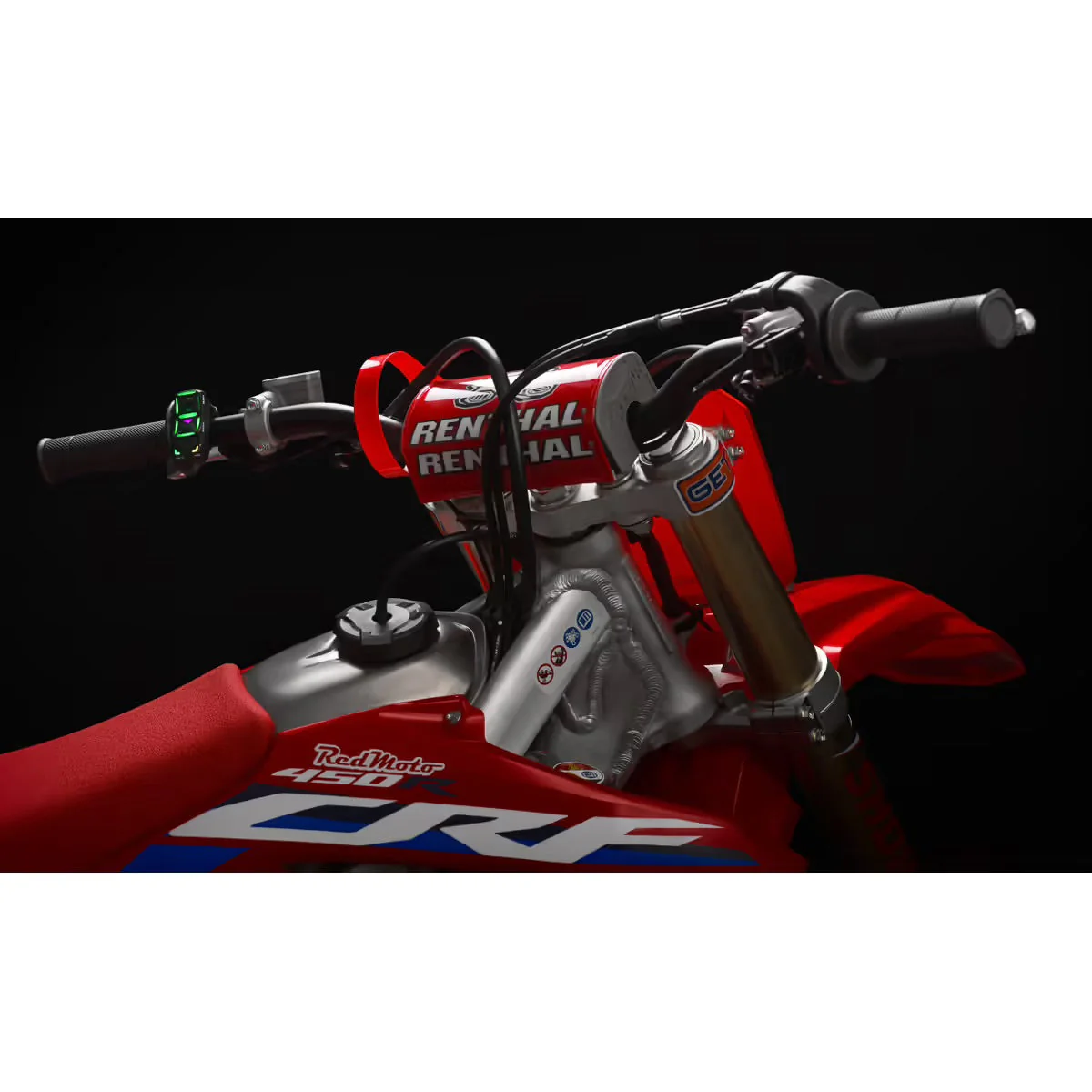

Multifunction handlebar SX1 CONTROLLER

SX1 CONTROLLER is your best ally in the quest for achieving absolute performance. It's an innovative multifunction handlebar control that intuitively and immediately unifies all the functions to manage every aspect of riding in real time. The seven integrated LEDs provide complete visual control over the selected engine maps and GPA traction control engage. Furthermore, the SX1 Controller monitor engine overheating, and activate Launch Control. Features and display modes can be customised via WiFi using the SX1 Connect, a device which is included in every SX1 PRO kit.

Wi-fi Module SX1 CONNECT

SX1 CONNECT is the most advanced Wifi module for connecting the control unit and a smartphone/tablet. It offers the possibility of customising the key mapping parameters to adapt them to your driving style and the racing terrain in an easy and intuitive way: when used with the App With WiGET, you will be able to intervene in total safety on the injection and advance parameters, save the best settings for each situation and select them whenever you need them. Furthermore, through the integrated "Monitor" function, you can view operating and diagnostic data in real time and the hours of use of the control unit. You can also obtain information on the status of the motorbike and schedule maintenance intervals.

For tuners who need to make advanced customisations to every aspect of the mapping parameters, the Maya programming software is available. Maya makes it possible to intervene professionally on the injection times and the ignition advance degrees, modify the rev limiter threshold, set the electronic gearbox cut-off times and many other advanced functions.

Finally, thanks to the CAN-bus based UDS communication protocol, SX1 PRO supports use with data acquisition systems such as SL1 Smart Logger, which allows technicians to monitor, export and analyse all information coming from the motorcycle's sensors.

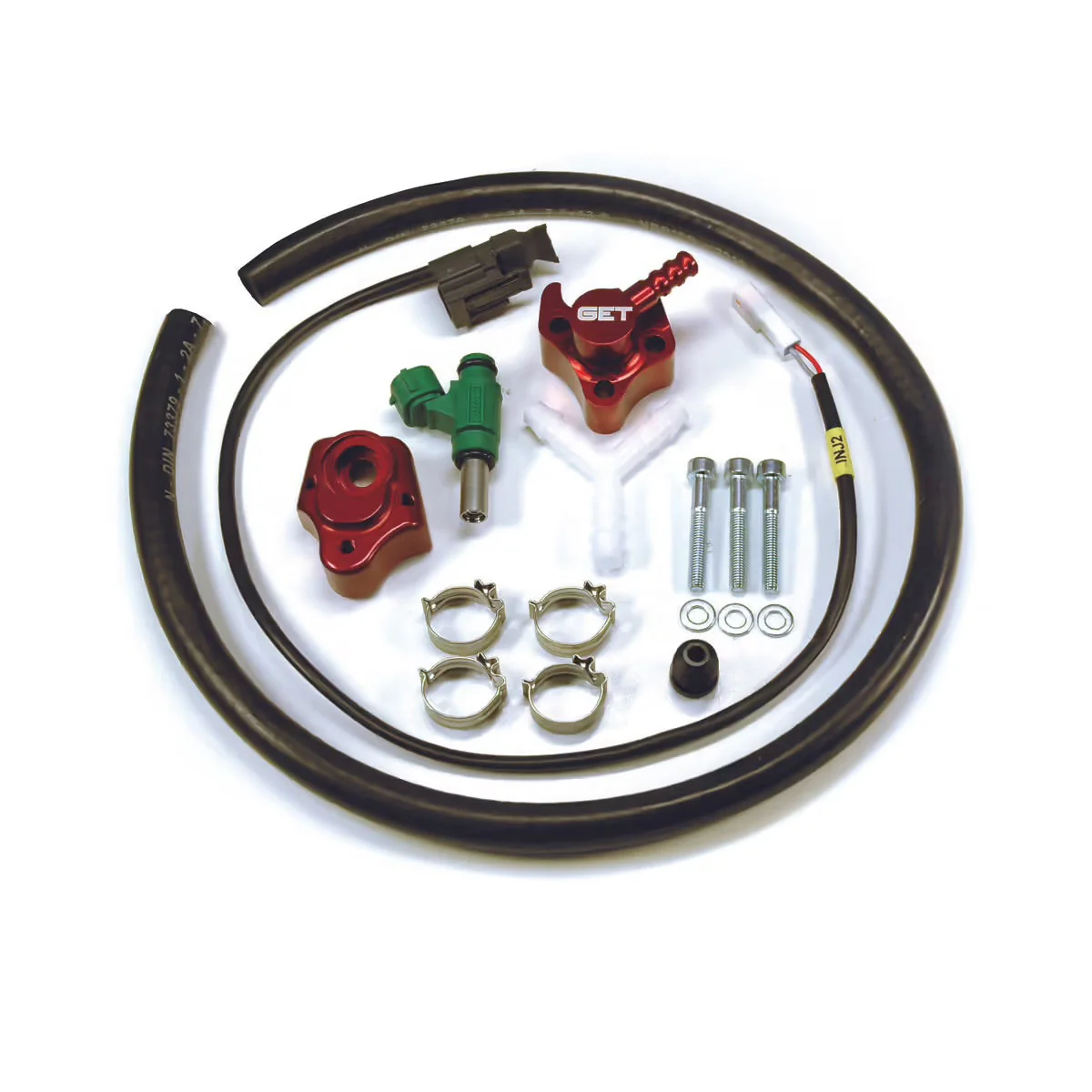

2nd Injector Kit

The 2nd INJECTOR KIT has been developed to increase the performance on 250cc 4T MX engines and to support the stock injector maximising the engine power and improving drivability. The kit works only with GET ECUs that are “2nd Injector Ready”. Works with both RX1 & SX1 ECUs and the dedicated map must be installed. All the installation parts are included in the kit together with the installation manual.

All the installation parts are included in the kit.

KEY FEATURES

• Power maximisation: Installing a second injector allows a huge power increase. The difference is real, especially on medium and high revs.
• Injection optimisation: GET kit ensures a higher power output, an improved
  fuel flow and a better throttle response as well.
• Engineered and tested in GET laboratories: The kit and the maps are developed for your specific machine. GET technicians study the OEM engine and components and design and define the second injector position. Strict quality tests are then performed both on dyno and on track.

ADDITIONAL INFORMATION

SX1 PRO 4-STROKE MANUAL - YAMAHA YZ250F/YZ450F 2024 SPECIFIC
SX1 CONTROLLER MANUAL
SX1 CONNECT MANUAL
2ND INJECTOR KIT MANUAL

GET the 'WiGET' App iPhone/iPad/Android:

WiGET is the app for the WiFi-Com device; it allows real time adjustment on the main engine parameters of your GET ECU, directly from your iPhone, iPad or Android.

BIKE FITMENT

YAMAHA

• YZ250F 2024
