KROOZR PERFORMANCE LOWERING LINKAGE KAWASAKI KX250F 21-24 / KX450F 19-23

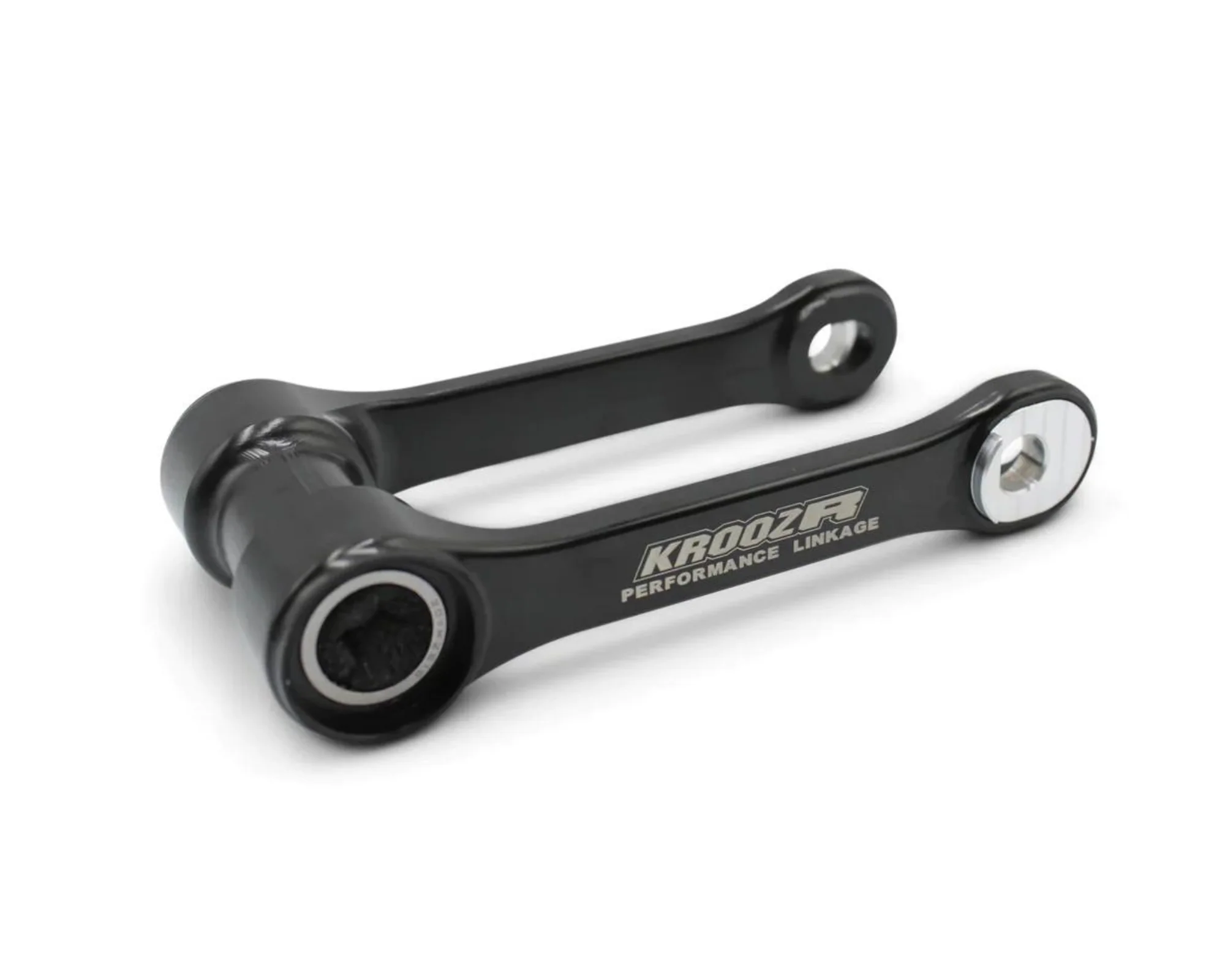

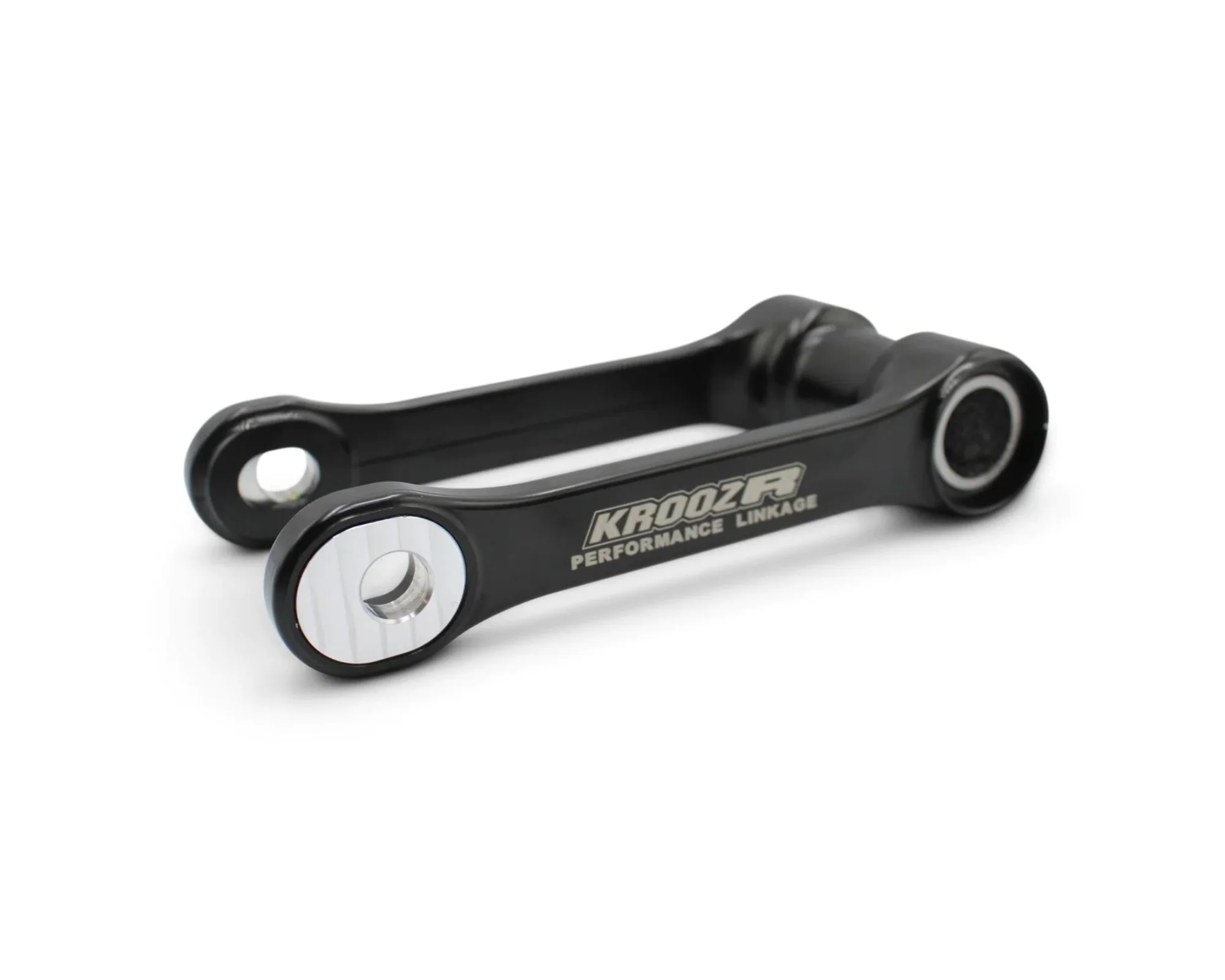

KROOZR PERFORMANCE LINKAGE
Designed and CNC Machined at Krooztune HQ here in Australia by Qualified Engineers and Suspension Professionals.
Adjustable Lowering Linkage designed to lower and flatten the rear of your Kawasaki KX250F/KX450F.Ā Ā
The Linkage is installed at the +1mm longer option.Ā This is theĀ most popular option allowing a flatter rear end without lowering excessively or upsetting the chassis. This works great under heavy braking and sand situations holding the rear end flat without the need to wind off shock spring preload or other measures to achieve this ride feeling.Ā
FittingĀ KroozR other 'option' button supplied results in approx. 10mm lowering of the rear end.Ā As these adjustable 2 buttons are 'offset and reversible' the complete options for lowering as listed below :Ā
- Installed ButtonĀ = 1mm / 6mm Linkage length. Results in Approx. - 5mm or 30mm lower at the seat height depending on installed button direction
- Option ButtonĀ = 2mm / 5mm - Approx. - 10mm or 25mm lower at the seat heightĀ depending on installed button direction
0=5/30Ā 1=10/25Ā
OEMĀ Seals and the Bearing pin/sleeve will need to be swapped across from the OEM linkage at time of install.Ā Ā
Fitting instructions included.
BIKE FITMENT
KAWASAKI
- KX250F 2021-2024
- KX250X 2021-2024
- KX450F 2019-2023
- KX450X 2021-2023
Product Information
Product Information
Shipping & Returns
Shipping & Returns
KROOZR PERFORMANCE LOWERING LINKAGE KAWASAKI KX250F 21-24 / KX450F 19-23
KROOZR PERFORMANCE LOWERING LINKAGE KAWASAKI KX250F 21-24 / KX450F 19-23
KROOZR PERFORMANCE LINKAGE
Designed and CNC Machined at Krooztune HQ here in Australia by Qualified Engineers and Suspension Professionals.
Adjustable Lowering Linkage designed to lower and flatten the rear of your Kawasaki KX250F/KX450F.Ā Ā
The Linkage is installed at the +1mm longer option.Ā This is theĀ most popular option allowing a flatter rear end without lowering excessively or upsetting the chassis. This works great under heavy braking and sand situations holding the rear end flat without the need to wind off shock spring preload or other measures to achieve this ride feeling.Ā
FittingĀ KroozR other 'option' button supplied results in approx. 10mm lowering of the rear end.Ā As these adjustable 2 buttons are 'offset and reversible' the complete options for lowering as listed below :Ā
- Installed ButtonĀ = 1mm / 6mm Linkage length. Results in Approx. - 5mm or 30mm lower at the seat height depending on installed button direction
- Option ButtonĀ = 2mm / 5mm - Approx. - 10mm or 25mm lower at the seat heightĀ depending on installed button direction
0=5/30Ā 1=10/25Ā
OEMĀ Seals and the Bearing pin/sleeve will need to be swapped across from the OEM linkage at time of install.Ā Ā
Fitting instructions included.
BIKE FITMENT
KAWASAKI
- KX250F 2021-2024
- KX250X 2021-2024
- KX450F 2019-2023
- KX450X 2021-2023
