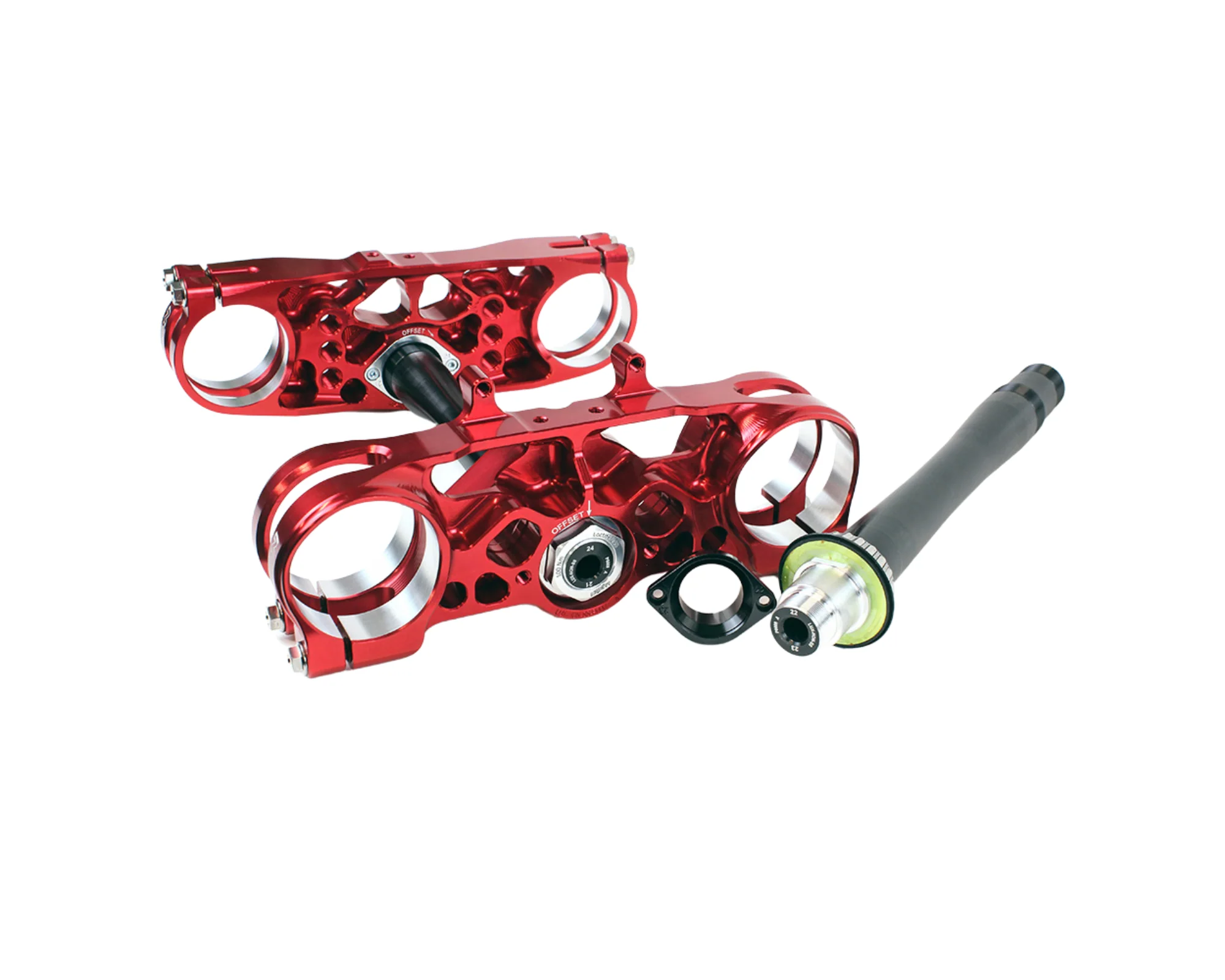

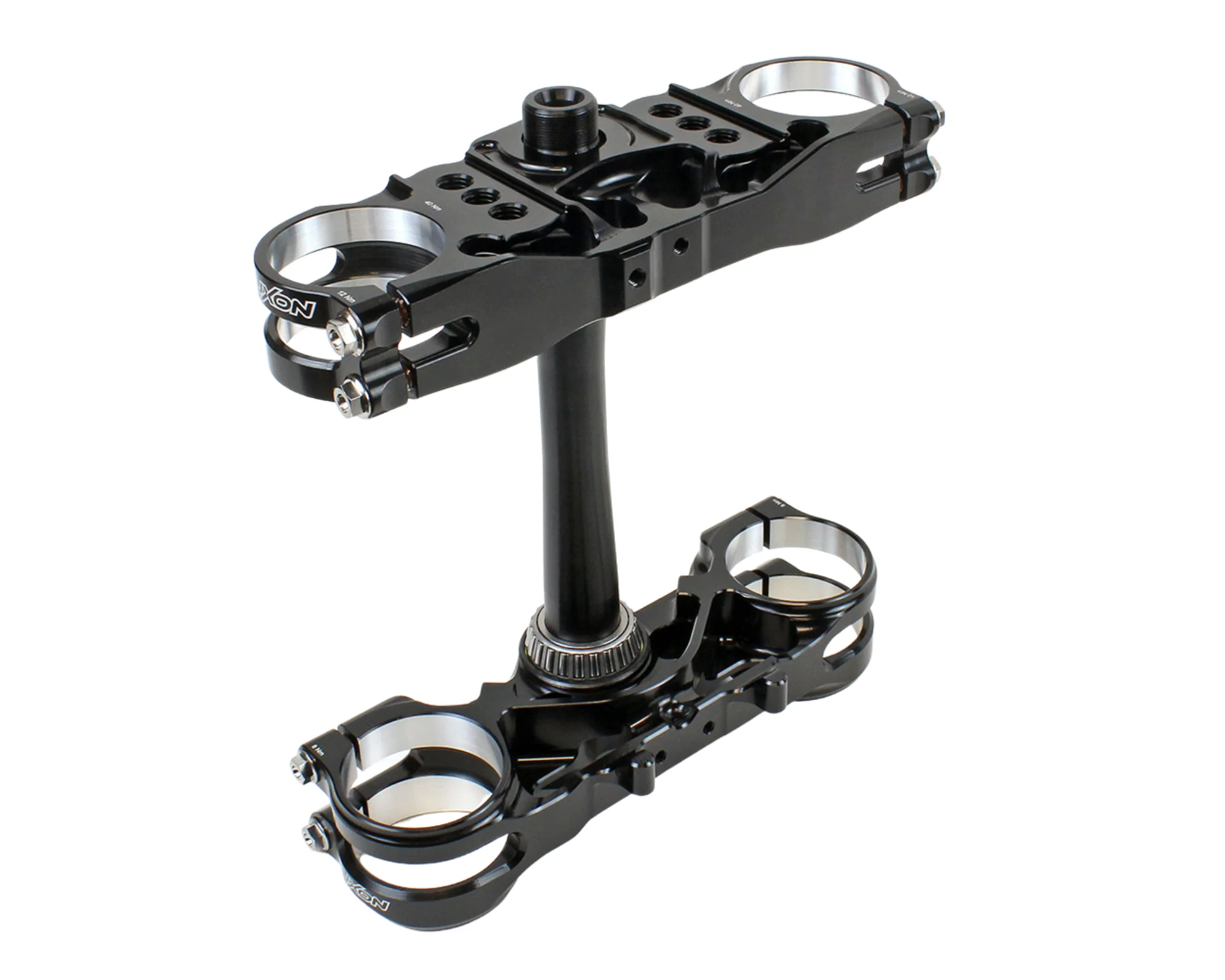

LUXON GEN3 PRO TRIPLE CLAMPS HONDA CRF250R 10-26 CRF450R 09-26
The Gen3 Pro clamps are the pinnacle of triple clamp technology and designed for the most demanding riders. Lighter and stronger than stock, they feature adjustable offset and adjustable stiffness to fine tune your ride. Bores are finish machined from the 7075-T6 aluminium after anodise ensuring precise alignment and eliminating slippage.
Stiffness parameters have been optimised for precision without sacrificing comfort. These clamps feature a split lower to improve suspension plushness. Optional braces are included that tie the lower split together to fine tune stiffness for faster riders who prefer a more precise handling character at the sacrifice of some comfort.
Features adjustable offset in 21, 22, 23, and 24 mm. Choose from black or red anodise colours.Ā
Also available in custom anodised colours such as: Purple, Pink, Club MX Blue (Turquoise), Bronze, Gold and Clear (Raw Aluminium Look). This will incur an additionalĀ lot charge price which covers both electropolish and anodise. Lead time is heavily dependent on Luxon current manufacturing schedules.Ā
INCLUDED IN KIT:
- Upper and lower clamps
- Two steering stems
- Two OEM lower bearings/races/seals installed
- Two offset inserts
- Braces for flex adjustment
- Titanium pinch bolts
- Anti-seize.
BAR MOUNTS NOT INCLUDED - SEE INFORMATION BELOW
SPECIFICATIONS
WEIGHT (NO BAR MOUNTS) 1,914 g, 4.22 lbs
STOCK WEIGHT (2024 450) 2,124 g, 4.68 lbs
- 2009-2016 CRF450R
- 2014-2017 CRF250R
- 2008 CRF450R
- 2017-2026 CRF450R
- 2018-2026 CRF250R
- 2002-2007 CRF450R
- 2004-2017 CRF250X
- 2005-2007 CRF450X
PLASTIC FITMENT NOTES
These clamps do not include a brake line guide mount. Luxon recommend either
- Use a number plate with an integrated brake line guide like a Cycra Stadium Plate or Acerbis Raptor 2 Front Plate
- Use a number plate mounted brake line guide (Acerbis part number 2042200001 works well)
BAR MOUNTSĀ
You will require bar mounts for these triple clamps as OEM mounts will not fit. All Luxon Gen 3 triple clamps use the M12 mounting interface: M12 bolts threaded directly into the top triple clamp with a 26mm wide groove to locate the bar mount. The mounts are spaced 90mm apart. Gen3 clamps are compatible with Luxon M12 bar mounts as well as any bar mounts compatible with Xtrig M12 clamps.
Luxon recommend using their Gen3 4-Post Bar Mount available here, but for those who prefer a solid mount - Luxon recommend their solid bar mounts available here.
STEERING DAMPERS
- Luxon recommend the Precision Parabolic Damper as it is lightweight, low-profile, and very effective. It's a direct bolt-on with Luxon 4-post or solid bar mount options.
- For Scotts damper users, Luxon have an above the bars top mount available here. This fits both their 4-post and solid bar mount options.
- Any bar mount/steering damper setup that fits the M12 (Xtrig) interface will fit Luxon Gen3 clamps.
- The HPSD (Honda damper) and similar WP damper mount kits are compatible with Luxon Gen3 clamps.
BIKE FITMENT
HONDA
- CR125R 2000-2007 * See note below
- CR250R 2000-2007 * See note below
- CRF250R 2010-2026
- 2010-2017 - Require upgrading to new fender, new number plate and may require bearing swap
- 2018-2021 - Require upgrading to new fender and new number plate
- 2022-2026 - Direct fit
- CRF250RX 2017-2026
- 2017-2021 - Require upgrading to new fender and new number plate - Fits but may not support all mounting brackets for lights, steering lock etc.Ā
- 2022-2026 - Fits but may not support all mounting brackets for lights, steering lock etc.Ā
- CRF450L 2019-2020 - Fits but may not support all mounting brackets for lights, steering lock etc.Ā may require upgrading to newer front plate and front fender
- CRF450R 2009-2026
- 2009-2016 - Require upgrading to new fender, new number plate and may require bearing swap
- 2017-2020 - Require upgrading to new fender and new number plate
- 2021-2026 - Direct fit
- CRF450RL 2023-2026 - Fits but may not support all mounting brackets for lights, steering lock etc.Ā
- CRF450RX 2017-2026
- 2017-2020 - Require upgrading to new fender and new number plate - Fits but may not support all mounting brackets for lights, steering lock etc.Ā
- 2021-2026 - Fits but may not support all mounting brackets for lights, steering lock etc.Ā
* Will fit 2000-2007 aluminium framed two stroke motocross models upgraded to a newer front end (plastics, wheel, and forks). Luxon can machine these clamps to fit the 47mm forks as a special order, contact us for details (you'll still need the updated fender and number plate).Ā
ADDITIONAL INFORMATION
VIEW INSTALLATION INSTRUCTIONS HERE
