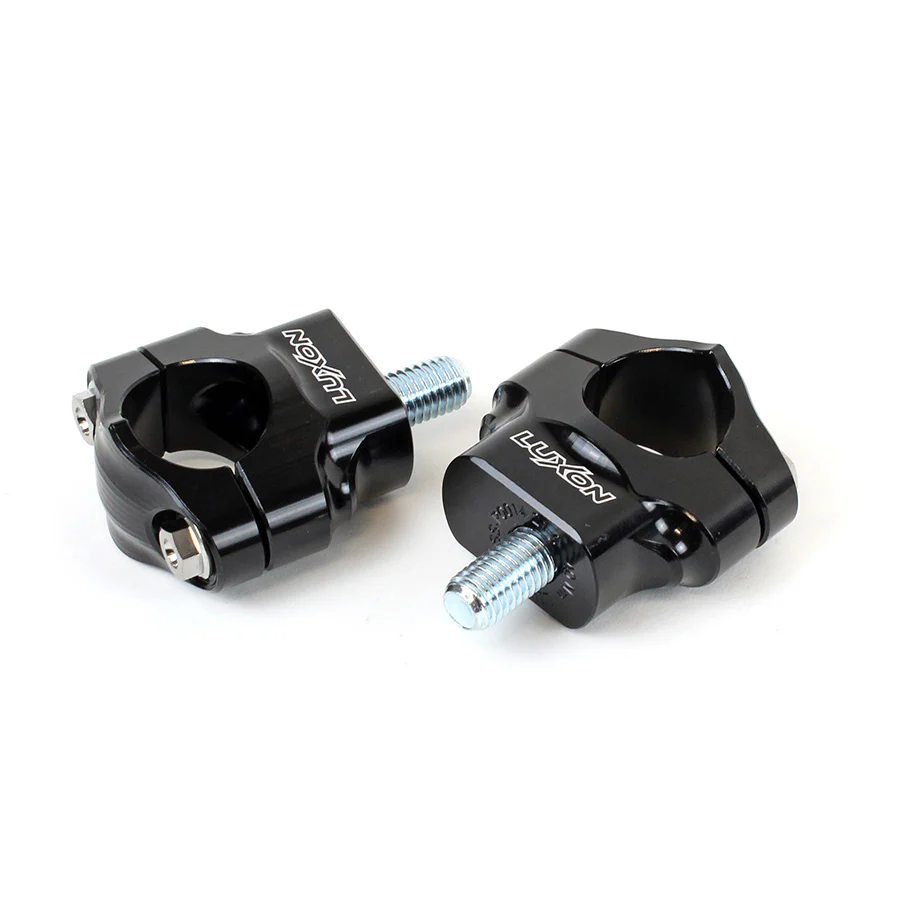

LUXON GEN3 SOLID 1 1/8" BAR MOUNTS (FOR GEN3 TRIPLE CLAMPS)
Solid bar mounts are the ultimate in low weight, high strength, and reliability, plus they offer a more direct feel to the front wheel. This all comes with reduced comfort, bump, and vibration isolation, when compared to LuxonĀ 4-post rubber isolated bar mounts.
These mounts fit Luxon Gen3 and Gen3 Pro triple clamps as well as many Xtrig triple clamps with an M12 interface. These DO NOT fit stock clamps or other aftermarket clamps.
These mounts have a height of 21mm (bottom of bar to top of triple clamp) and a 3.75mm offset (7.5mm of bar position change when flipping the mounts around). AnĀ optional spacer kitĀ is available (allows 21mm, 26mm, 31mm, and 36mm heights).
KIT INCLUDES:
- Lower bar mounts
- Upper bar clamps
- High strength steel mounting hardware (Titanium clamp bolts are an optional upgrade)
- Anti-seize
- Installation instructions
FITMENT:
These mounts fit Luxon Gen3, Gen3 Pro, and many Xtrig triple clamps. They do NOT fit stock clamps or other aftermarket clamps. Luxon mounts fit most bikes without issue. In some cases, you may need to trim plastic brackets or relocate hour meters or accessories to allow clearance in the extreme mounting positions (for example: front hole, bars away from the rider). Always check for full clearance after installation and before riding.
BAR SIZE:
Luxon 1 1/8" bar mounts fit standard 1 1/8" (28.6mm) handlebars (sometimes called fatbars).Ā Luxon do not offer bar mounts to fit the old 7/8" size handlebars. Other aftermarket companies offer adapter bushings to fit the 7/8" bar diameter in standard 1 1/8" mounts if necessary.
BAR CLAMP BOLTS - available in two options:
- High Strength Steel
- Grade 5 Titanium (optional upgrade)
SPECIFICATIONS
WEIGHT 301 g, 0.66 lbs
WEIGHT 281 g, 0.62 lbs (with Ti bolts)
