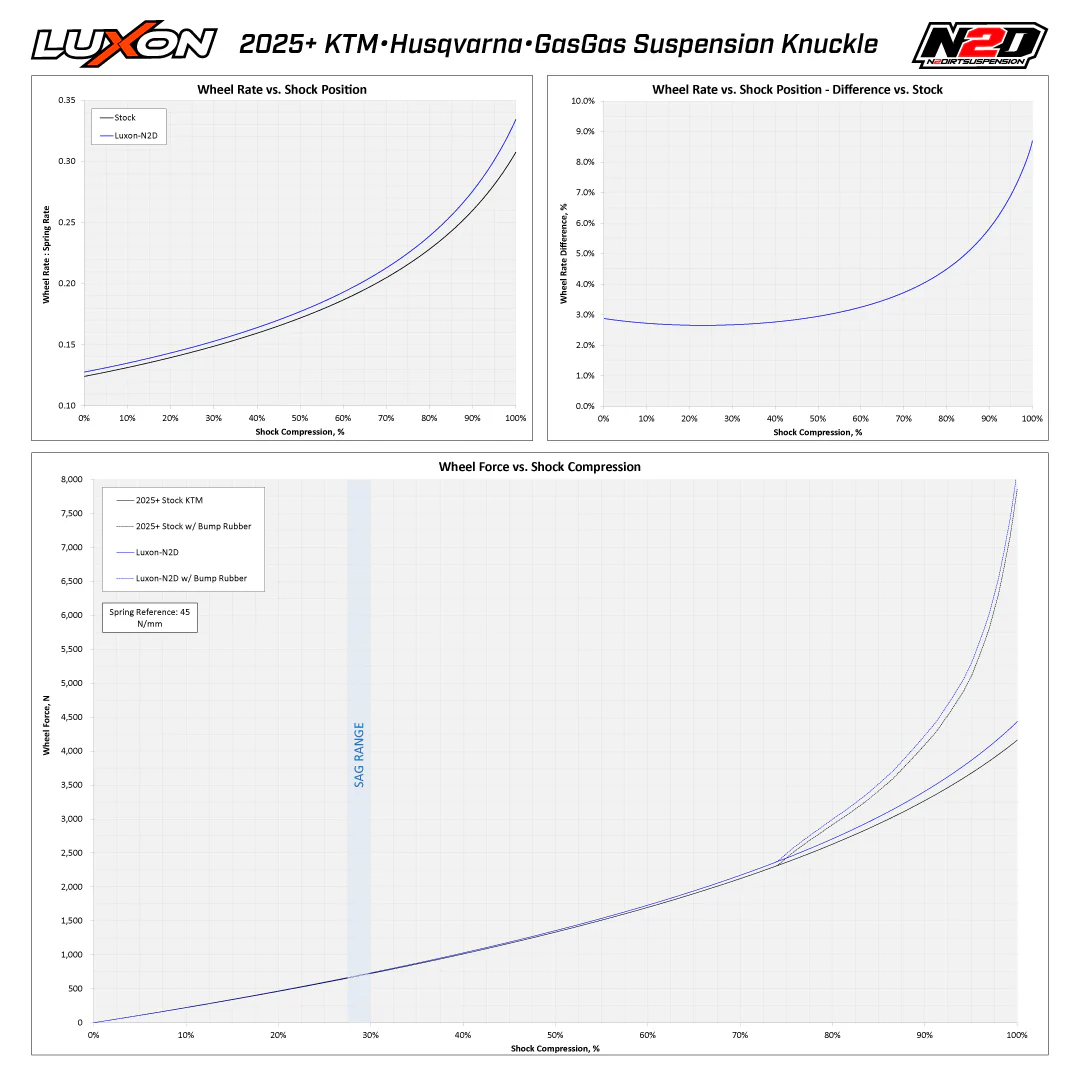

Luxon knuckle maintains stock ride height, increases holdup mid-stroke, and is more progressive near the end of stroke for more bottoming resistance. This allows for a softer setup to provide a more plush ride early in the stroke which better absorbs chatter and small bumps and increases traction. The revised motion ratio still provides better bottoming resistance than stock.

Bolt it on, check your sag and go. Luxon recommend softening up your low and high speed compression and adjusting from there as needed.

KEY FEATURES

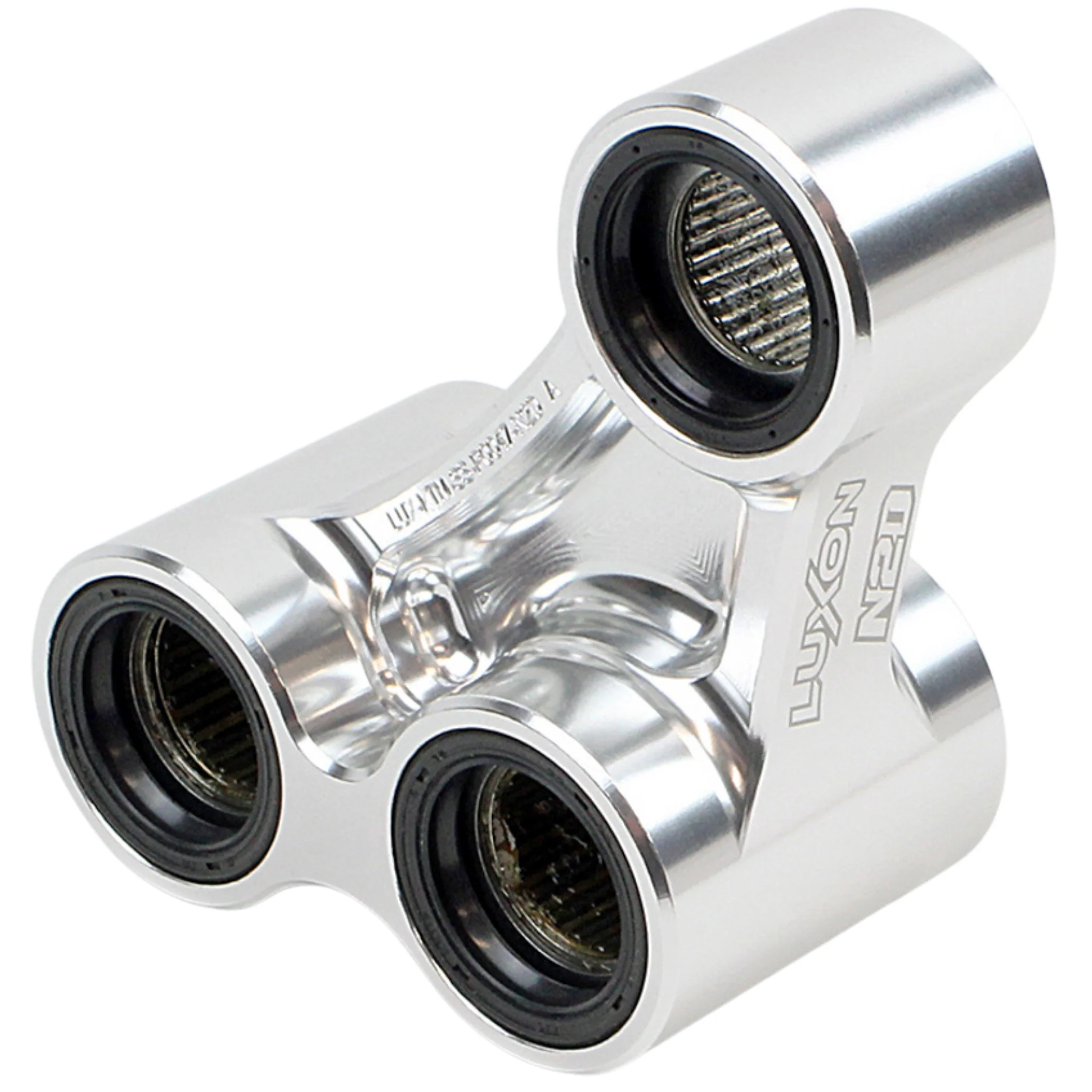

• Precision machined from billet aluminium, clear anodised, and laser etched.
• Includes OEM bearings and seals pre-installed and fit

Want an outside opinion? Read the MXA test and review of this knuckle here in Luxon review section! (*The review is for the 2024 version, but the 2025-2026 has an identical motion ration, just different bearings, so the performance changes are the same.)

This knuckle is NOT compatible with some lowering links. It is compatible with Luxon adjustable link arm, but heavier weight springs may interfere with the swingarm at the +3mm or +4mm adjustment lengths (all other lengths will work fine). Soft springs may not interfere at all (it's a tight fit at the swingarm and heavy springs are bigger).

SPECIFICATIONS

WEIGHT (WITH BEARINGS AND SEALS) 380 g, 0.84 lbs

BIKE FITMENT

GASGAS

• EX 250F 2025
• EX 300 2025-2026
• EX 350F 2025

• MC 125 2025-2027
• MC 150 2025
• MC 250 2025-2026
• MC 250F 2025-2027
• MC 300 2025
• MC 350F 2025
• MC 450F 2025-2027

No linkage arm and no spring change required. Re-valve through @n2_dirt always recommended, but not strictly required.

HUSQVARNA

• FC250 2025-2027
• FC350 2025, 2027
• FC450 2025-2027
• FX350 2025, 2027

• FX450 2027
• TC125 2025-2027
• TC150 2025
• TC250 2025-2027
• TC300 2025, 2027
• TX300i 2025-2027

No spring change required. Re-valve through @n2_dirt always recommended, but not strictly required. This knuckle is designed around the KTM/GasGas geometry, so on a "10mm lowered" Husqvarna, it will raise the ride height by about 5.4 mm in the rear. This can be addressed by using Luxon adjustable link arm in the 2mm longer setting (3 dots) to bring the rear end back down.

KTM

• 125 SX 2025-2027

• 125 XC TBI 2025, 2027

• 150 SX 2025
• 250 SX 2025-2027
• 250 SX-F 2025-2027
• 250 XC TBI 2025-2027

• 250 XC-F 2025-2027
• 300 SX 2025-2027
• 300 XC TBI 2025-2027

• 350 SX-F 2025-2027
• 350 XC-F 2025, 2027
• 450 SX-F 2025-2027
• 450 XC-F 2025-2027

No linkage arm and no spring change required. Re-valve through @n2_dirt always recommended, but not strictly required.
