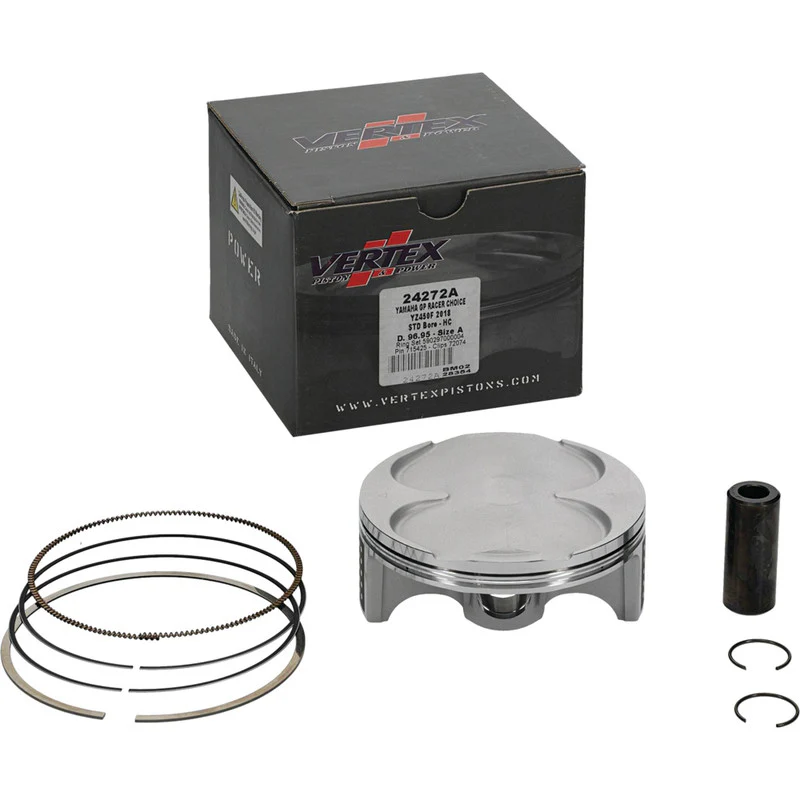

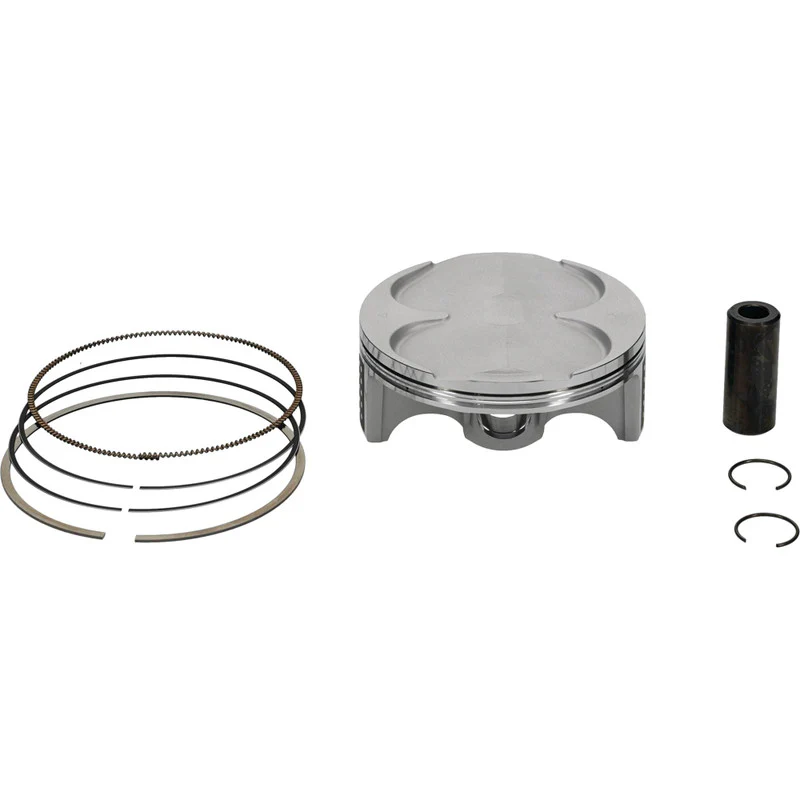

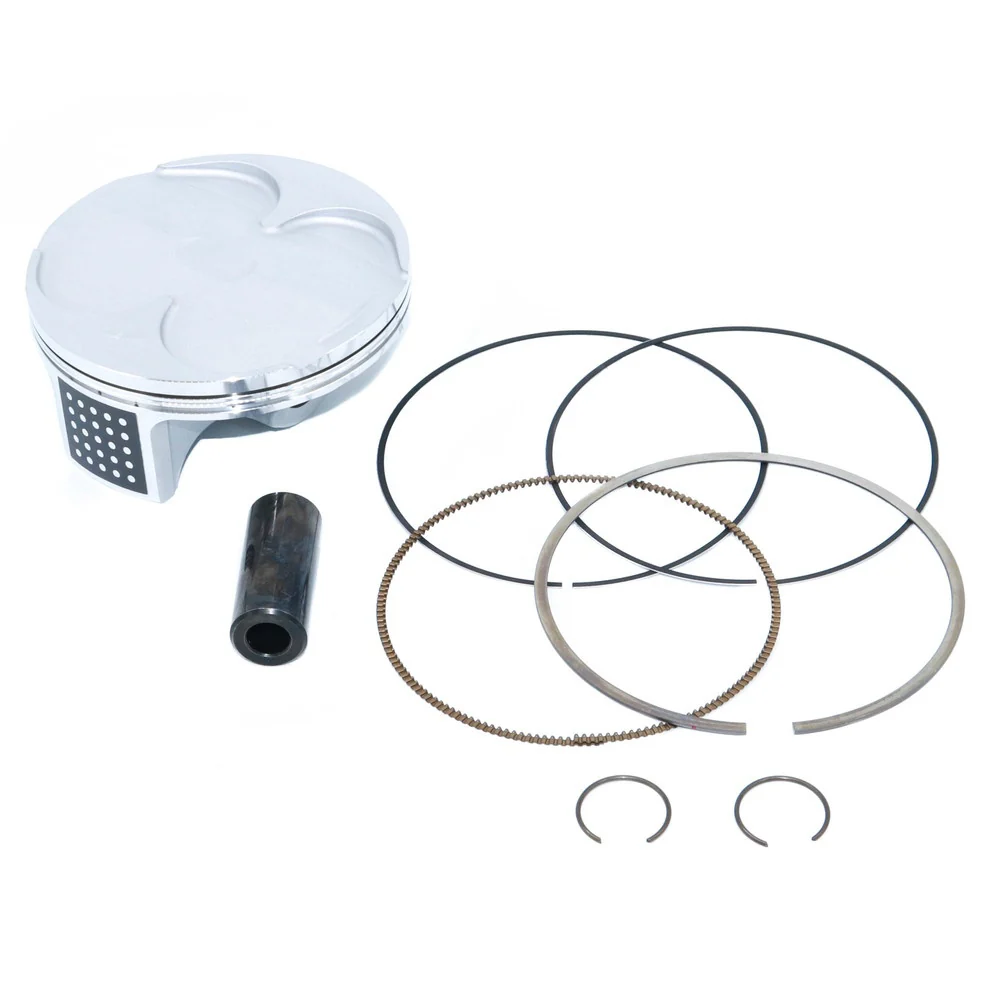

KIT INCLUDES

• Piston
• Piston Pin
• Circlips
• Rings

PISTON SPECIFICATIONS

A PISTON:

• GP Racer's Choice Piston / High Comp
• Compression Ratio: 13.3:1
• Cylinder Diameter: 97mm

• Displacement: 450cc

• Piston Diameter: 96.93mm

B PISTON:

• GP Racer's Choice Piston / High Comp
• Compression Ratio: 13.3:1
• Cylinder Diameter: 97mm

• Displacement: 450cc

• Piston Diameter: 96.94mm

C PISTON:

• GP Racer's Choice Piston / High Comp
• Compression Ratio: 13.3:1
• Cylinder Diameter: 97mm

• Displacement: 450cc

• Piston Diameter: 96.95mm

VERTEX PISTON KIT

Four-stroke engines have much higher cylinder pressures than two-strokes and are generally manufactured from forgings. To handle the internal pressures of a four-stroke engine, Vertex's four-stroke pistons are forged from the highest quality 2618 aluminium alloy for superior strength and durability. Vertex also utilises a T-box forging on their highest compression pistons. This new design builds on Vertex's outstanding dedication to quality by making it more durable and able to handle even the most demanding rigours better than ever before. Vertex also uses proprietary piston profiles and compression ratios offered in A, B, C and D sizes to maximise power and performance while reducing blow-by and oil consumption.

All Vertex Pistons Feature:

• Kits include piston, rings, wrist pin and circlips
• All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
• Replacement rings are sold individually

Note: Please ensure you have measured and selected the correct size piston.

BIKE FITMENT:

YAMAHA

• WR450F 2019-2020
• YZ450F 2018-2019
• YZ450FX 2019-2020
