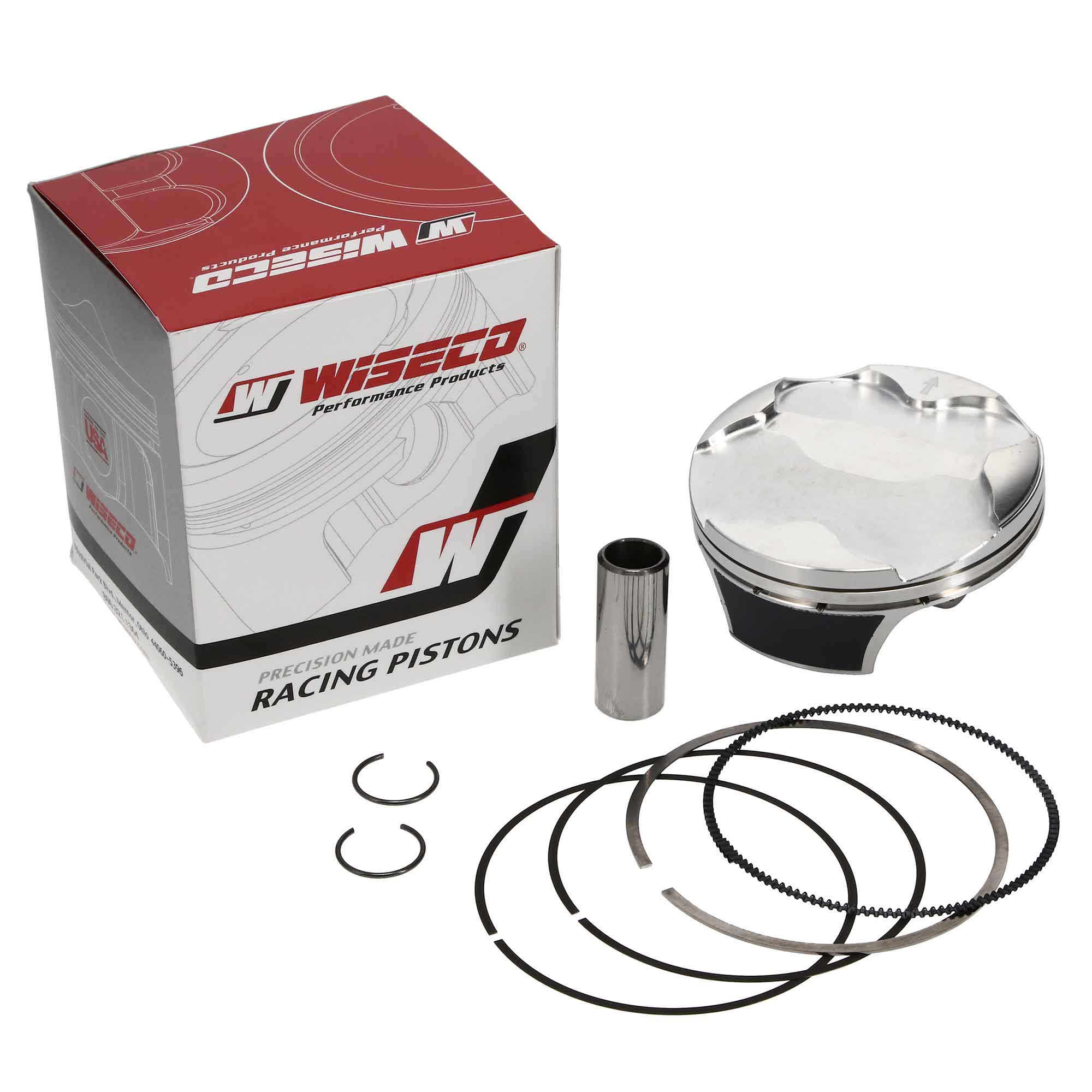

KIT INCLUDES

• Piston
• Piston Pin
• Circlips
• Rings

WISECO PISTON KIT

Wiseco leads the performance aftermarket by producing the highest quality forged pistons in the U.S.A. Wiseco is unique because they forge all of their own pistons in-house, and produce all of their own forge tooling in the U.S.A. This allows Wiseco to control all aspects of their manufacturing process from raw bar to skirt coating on the finished parts.

Wiseco Pro-Lite motorcycle pistons are forged using the highest quality materials available resulting in a piston that provides excellent performance and durability. The Wiseco Pro-Lite piston features a race-ready dome finish with smooth edges for improved combustion flow. The rings, wrist pin, and circlips are manufactured by Wiseco under their strict quality standards to make sure every piston kit fits correctly, ensuring top performance is achieved.

Wiseco’s ArmorGlide™ coating eliminates the need to check for different piston sizing and the only thing to confirm before fitment is bore size.

FEATURES

• Much stronger than OEM.
• Dedicated forging
• Race-proven design
• Tight tolerances
• More hours with peak performance between piston changes.
• Include rings, wrist pin and circlips

PISTON SPECIFICATIONS:

COMPRESSION RATIO: 12.8:1

• Product Series: 4 Stroke Forged Series

• Bore Diameter: 97.00 MM

• Compression Ratio Actual: 12.8:1

• Piston Diameter: 96.95 MM

• Piston Material: 2618

• Skirt Coating: Yes

• Piston Oversize: Standard

COMPRESSION RATIO: 13.5:1

• Product Series: 4 Stroke Forged Series

• Bore Diameter: 97.00 MM

• Compression Ratio Actual: 13.5:1

• Piston Diameter: 96.95 MM

• Piston Material: 2618

• Skirt Coating: Yes

• Piston Oversize: Standard

COMPRESSION RATIO: 14.0:1

• Product Series: 4 Stroke Racer Elite Series

• Bore Diameter: 97.00 MM

• Compression Ratio Actual: 14.0:1
• Piston Diameter: 96.95 MM

• Piston Material: 2618

• Skirt Coating: Yes

• Piston Oversize: Standard

Note: Please ensure you have measured and selected the correct size piston.

BIKE FITMENT:

YAMAHA

• WR450F 2019-2020
• YZ450F 2018-2019
• YZ450FX 2019-2020
